12Roland SPD-SX PRO
Item No. : 198000
The specialist's opinion
The SPD-SX PRO is the ultimate sampling multipad for the most demanding musicians.
The fruit of many years of touring tests and multiple user reviews of the SPD-S and SPD-SX, the SPD-SX PRO, the flagship of the range, raises the bar even higher.
Improving on the advanced sample pad technology of its predecessors, the SPD-SX PRO offers a wide range of professional enhancements and is designed for touring play Work in the darkest scenes thanks to the large color display and customizable pad multi-lighting. Enhance your versatility with more audio inputs, more trigger inputs, and expression pedal control of hi-hat and effects. And go even further with 32 GB of memory, 48 kHz audio playback, improved pad sensitivity without Crosstalk, and a dedicated SPD-SX PRO app for easy kit editing.
Designed for touring
Touring instruments have it tough, on stage and on the road. Since 2011, professional drummers have subjected the SPD-SX to the test of fire, both in crowded clubs and in the world's largest stadiums. The SPD-SX PRO continues this legacy, incorporating years of user feedback to make it even better. With its customizable LEDs, large color display, and flawless triggers, you can count on it night after night.
Customizable LEDs for pads
When the lights dim in the room, the PRO lights up. Customizable pad-identifying LEDs, plus bright trigger indicators, let you distinguish all nine pads on the darkest stages. No need for fluorescent strips! You can assign horizontal or vertical light markers from the ten preset colors, or create and name your own assortments. Group bass drums, snare drums, playbacks and clicks with their own color codes. And set the horizontal pad light markers to be constantly lit, or only when the pad is struck, or to flash dynamically depending on the WAV file chosen.
A color LCD display
Playing in the dark is becoming less and less of a problem. The SPD-SX PRO incorporates a large color display with different types of backlit function buttons, and a thumbwheel for quick sound selection. This screen displays essential information in real time: A & B sample overlays, WAV sample names, playback progress, etc.
- Integrated pads: 9 (with pad LED and vertical LED)
- 4 external Trigger inputs available, allowing connection of up to 8 pads via Y cable
Maximum polyphony
- 32 voices (including clicks)
Recordable data
- Number of storable samples: 20,000 (including preloaded data)
- Internal memory: 32 GB (including preloaded data)
Sampling time
- From AUDIO IN: 60 minutes per sample
- Resampling: 10 minutes per sample
Formats and frequency
- Data format: 16-bit linear
- Sampling frequency: 48 kHz
- Imported formats: WAV, AIFF, MP3
Kits & Samples
- 200 kits
- Factory-preloaded samples: over 1,550
- Setlist: 32 (32 steps per setlist)
Effects per kit
- Layer equalizer: per pad (Layer A/B independent)
- Layer Transient: per pad (Layer A/B independent)
- Multi-effects: 4 systems, 53 types
- Side Chain compressor: 1 system
System effects
- Master Effects (53 types)
- Master Compressor
- Master Equalizer
USB Audio
- Native rate: 48 kHz
- Compatibility: 96 kHz and 44.1 kHz via conversion
- Recording: 8 channels
- Playback: 12 channels
Display
- Graphic LCD color display 4.3"
Connectics
- Headphones: 1/4 "stereo jack
- MASTER OUT outputs (L, R, balanced): 1/4 "TRS jack
- DIRECT OUT x4 outputs (balanced): 1/4 "TRS jack
- AUDIO IN input: 1/4" stereo jack with volume control
- TRIG IN x4 (1/2, 3/4, 5/6, 7/8): 1/4 "TRS jack
- FOOT SW x1 (1/2): 1/4 "TRS jack
- HH CTRL/EXPRESSION : 1/4 "TRS jack
- MIDI (IN, OUT/THRU)
- USB COMPUTER: USB-B port (USB Audio, USB MIDI, appli, High-Speed)
- USB MEMORY: USB-A port (save/load, sample import/export)
- DC IN
Power supply
- DC 12V power adapter
- Consumption: 1,500 mA
Dimensions
- 360 (W) x 330.3 (D) x 92.9 (H) mm
- 14-3/16 (W) x 13-1/16 (D) x 3-11/16 (H) inches
Weight
- 3.0 kg / 6 lbs 10 oz (excluding AC adapter)
Accessories included
- Quick start guide
- "Read Me First "brochure
- "Safe Use / Important Notes"
- Power adapter
Notice
Options (sold separately)
- Pads: PD, PDX, BT-1 series
- Cymbals: CY Series
- Hi-Hat: VH-10, VH-11
- Kicks: KD, KT series
- Pad stands: PDS-20, PDS-10

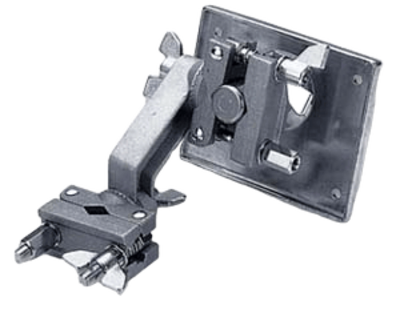

- Universal clamp: APC-33
- Acoustic triggers: RT-30K, RT-30HR, RT-30H
- Hi-Hat pedals: FD-8, FD-9, VH-10, VH-11
- Expression Pedals: BOSS EV-30
- Footswitch: DP-2
- Footswitch: BOSS FS-5U, FS-6, FS-7
- Y cable: PCS-31L
- USB Key
Guides & Reviews
Additional Files
 Quick operation guide |
| User manual |
Specification
| Générale | |
|---|---|
| Nombre de pad : | 9 |
| Polyphony : | 32 voices |
| Storage : | 32 GB |
| Format : | 16-bit |
| Frequency : | 48 kHz |
| Compatible : | WAV, AIFF, MP3 |
| Nombre de kit : | 200 |
| Setlist : | 32 |
| Connectors | |
| Entrées : | Audio IN Jack (phone type), Headphones (phone type), Trig IN Jack x 4 (phone type), HH CTRL / EXPRESSION Jack (phone type), MIDI (IN, OUT/THRU), Foot Switch Jack (phone type), USB Computer port, USB Memory port, DC IN Jack |
| Sorties : | Master Out jack BALANCED (phone type), Direct Out jack BALANCED (phone type) |
| Dimensions and weight | |
| Length : | 360 mm |
| Width : | 330.3 mm |
| Height : | 92.90 mm |
| Weights : | 3 kgs |
