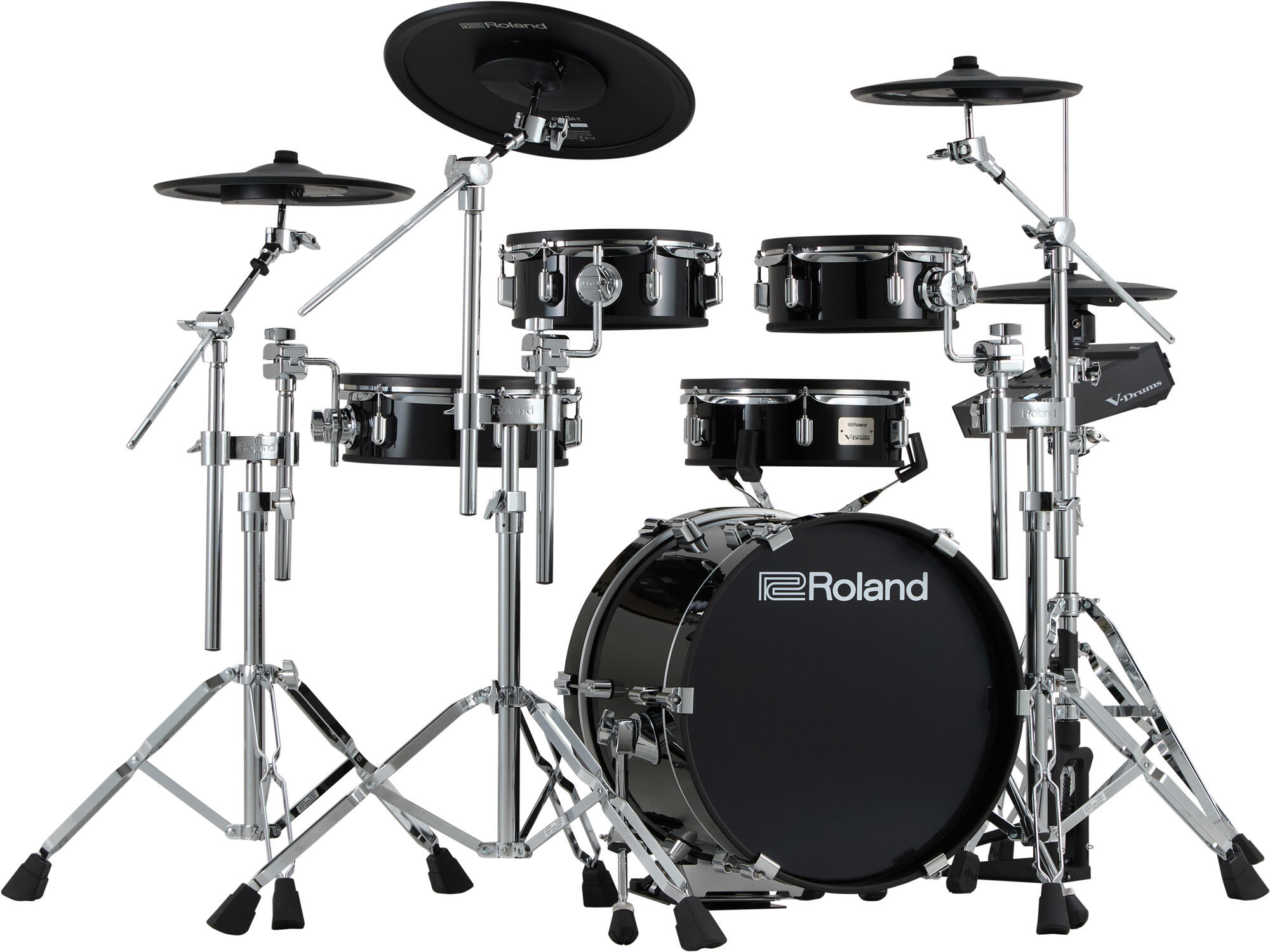

123Roland VAD316 V-DRUMS, V31 SOUND MODULE, STANDARD RACK-SYLE DRUM STAND
Item No. : 211651
Product variations
The specialist's opinion
The Roland VAD316 brings the famous V-Drums Acoustic Design experience to the V-Drums 3 Series.
With reduced-depth wooden shells and a standard-diameter bass drum, this kit provides the same presence, feel and layout as an acoustic instrument, but with total volume control.
For its part, the V31 module offers high-end features, advanced coaching tools and Wireless connectivity for easy playing, learning and adding sound extensions. Whether you're working at home, playing on stage or recording in the studio, the VAD316 combines a premium Acoustic format with next-generation V-Drums technology, to give you the best of both worlds.
Highlights
- An Acoustic Design V-Drums with five reduced-depth wooden shells, including a standard-diameter bass drum
- An upgradable V31 Sound module, powered by the same advanced tone generator as the flagship V71
- A 12-inch PDA120LS Snare drum with tension-adjustable mesh Drumhead and Cross-Stick hit detection
- An 18-inch KD-18 Bass drum with innovative skin-mounted sensor system, expanded detection zone and adjustable boost
- PDA tom pads (two 10-inch and one 12-inch) with two detection zones and shallow Wooden shells
- The VH-10 hi-hat is mounted on a traditional stand (not supplied) allowing natural control of open/closed hits
- The CY-12C-T and CY-14R-T crash cymbal pads with natural response, edge and body detection, with hand mute capability
- The CY-16R-T ride cymbal pad with natural response, edge/body/bell detections, with hand mute capability
- A dedicated input for an advanced digital snare drum, ride or hi-hat pad (optional)
- Three DCS-30 combo stands with multiple positioning and high stability (hi-hat and Snare drum stands, Bass drum pedal and stool sold separately)
- Integrated Coach mode with Phrase Trainer, Stroke Monitor and other tools, plus exclusive Melodics content for V-Drums drummers
- Multichannel audio transmission via USB-C and MIDI connectors, for use with music production software and software instruments
- Bluetooth audio for streaming music and playbacks from a mobile terminal
- Wireless compatibility for operation with a smartphone app, allowing management of sound extensions and control of the module's key functions
- Enhance your creative options with an ever-expanding collection of content on Roland Cloud, including V-Drums Instrument Extensions based on premium DW Drums
Drums Kits
- 200 (Presets: over 70)
Instruments
- More than 1,000
Effect types
- Layer Transient: each layer
- Layer equalizer: each layer
- Pad equalizer: each pad (separate head and edge)
- Pad compressor: each pad (common head and edge)
- Overhead mic simulator
- Room / Reverb / Kit Resonance
- Bus effect: 4 systems (two usable simultaneously per system / with side chain function), 94 types
- Bus reverb
- Main compressor
- Main equalizer
User sample import
- Number of user samples: maximum 500 (including factory-preloaded user samples)
- Total sound duration: 24 minutes mono, 12 minutes stereo
- Supported file formats: WAV (44.1 kHz, 16/24 bit)
Song player (SD card)
- Audio files: WAV (44.1 kHz, 16/24 bits), MP3
Recorder
- Recording method: real-time
- Maximum storage capacity: approx. 40,000 notes
- Exported file format: WAV (44.1 kHz, 16-bit), SMF
- or
- Recording method: real time
- Maximum duration: 60 min (temporary recording: 1 min) (*1)
- File format: WAV (44.1 kHz, 16 bits)
Display
- 4.3-inch graphic color LCD display
External memory
- SD card (SDHC compatible)
Connectors
- TRIGGER INPUT x 1: DB-25 connector (Kick, Snare, Tom1, Tom2, Tom3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) (not usable with digital pad)
- TRIGGER IN x 2: 1/4" TRS jack (CRASH 2, AUX/TOM 4)
- DIGITAL TRIGGER IN x 1: USB A port
- MASTER OUT (L/MONO, R): 1/4" jack, unbalanced
- PHONES x 1: stereo mini-jack
- MIX IN x 1: stereo mini-jack
- MIDI OUT
- USB COMPUTER: USB Type-C® port (Audio and MIDI class compatible / Roland driver for Audio and MIDI)
- DC IN
USB audio channels (record/playback)
- Vendor mode: 44.1 kHz (original) / 96 kHz, 48 kHz (with converter) - Recording: 30 channels / Playback: 32 channels
- Generic mode: 44.1 kHz - Recording: 2 channels / Playback: 2 channels
Power supply
- Mains adapter
Consumption
- 1,100 mA
Sleep mode consumption (automatic shutdown)
- 0.24 W
Dimensions
- 316 (W) x 246 (D) x 97 (H) mm
- 12-1/2 (W) x 9-11/16 (D) x 3-7/8 (H) inches
Weight
- 2.2 kg
- 4 lb 14 oz
Accessories
- Quick Start Guide
- Roland Cloud Connect installation guide
- Power adapter (PSB-7U)
- Special connection cable
- Sound module mounting kit
- "SAFE USE "brochure
(*1) Recording a song requires an SD card. If no card is inserted, a temporary recording of around 1 minute is possible.
Guides & Reviews
Additional Files
 Assembly manual |
Specification
| Générale | |
|---|---|
| Series : | 3 Series |
| Range : | V-Drums Acoustic Design |
| Set up | |
| Module : | V31 |
